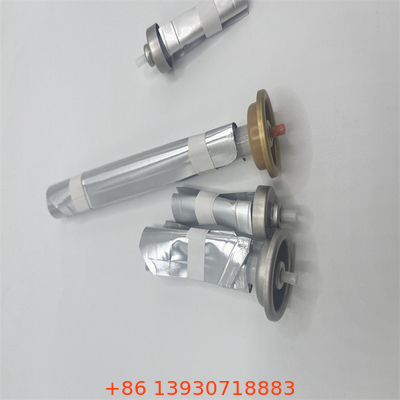

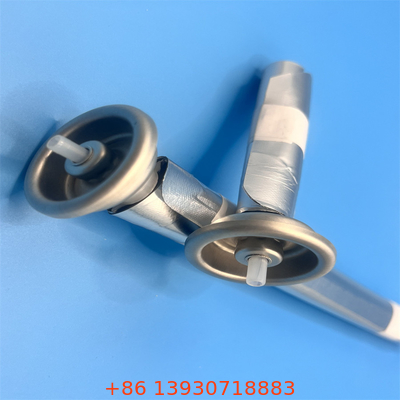

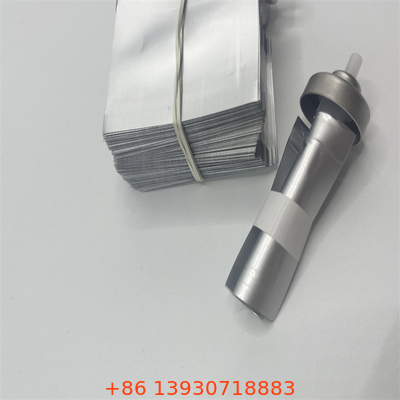

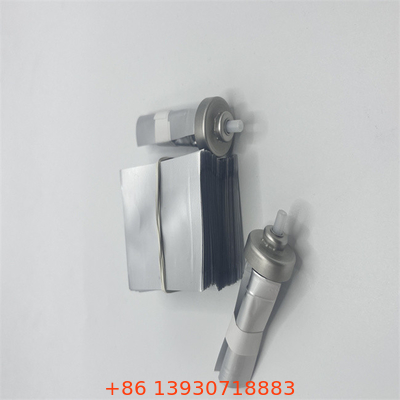

Robust and Versatile Bag on Valve Technology for Industrial Lubricants and Chemicals with Any-Angle Operation
Engineered for durability and performance, our industrial-grade Bag on Valve system is the definitive solution for packaging challenging chemical and lubricant formulations. This practical packaging innovation utilizes a simple yet brilliant mechanism: the product is securely enclosed in a chemically resistant pouch, while the propellant is contained in the outer chamber. This physical separation is crucial for maintaining formula stability, preventing aggressive solvents, acids, or lubricants from reacting with the propellant or corroding the canister.
The core benefit of this BOV mechanism is its ability to operate at any angle--a critical feature for industrial and DIY applications. Whether applying a lubricant upside-down to a machinery part under tension, spraying a cleaner sideways onto a vertical surface, or coating an adhesive in a tight corner, the system delivers a consistent, reliable spray without sputtering or clogging. It also ensures up to 99% product evacuation, minimizing waste and maximizing value from every can. Our Bag-on-Valve technology is built to be tough, reliable, and highly efficient, providing a superior user experience and protecting the quality of your industrial products from the production line to the end-use.
Key Features
- The robust Bag on Valve system isolates corrosive chemicals from the canister wall, preventing corrosion and ensuring safety.
- Enables true any-angle operation for precise application in hard-to-reach areas, a key advantage for maintenance and repair.
- Dispenses a wide range of viscosities reliably, from thin solvents to thick grease-like lubricants, without clogging.
- Features a chemically resistant pouch and valve components for enhanced formula stability and product shelf life.
- Reduces product leftover and waste significantly compared to traditional aerosol cans.
Application Scenario
A maintenance technician needs to lubricate a critical bearing located in an overhead, cramped space. Using a can equipped with our BOV system, they can spray the lubricant upside-down with pinpoint accuracy. The valve performs perfectly, delivering a consistent stream without dripping or failing, allowing the technician to complete the job quickly and efficiently.
Technical Specifications
| Model |
Max Capacity |
Length * Height (mm) |
Aerosol Can Size |
| JC-100-P250 |
300ml |
185 * 100 |
59 * 210 |
| JC-100-P200 |
220ml |
145 * 100 |
53 * 180 |
| JC-100-P150-1 |
150ml |
125 * 90 |
50 * 150/155 |
| JC-100-P100 |
120ml |
100 * 90 |
50 * 125 |
| JC-100-P80 |
80ml |
100 * 80 |
40 * 120/130 |
| JC-100-P65 |
65ml |
90 * 80 |
40 * 110/35 * 110 |
| JC-100-P50 |
50ml |
90 * 65 |
35 * 110 |
Frequently Asked Questions
Is the Bag on Valve system resistant to a wide range of industrial chemicals?
Yes, we select specific pouch laminate and elastomer materials based on your product's chemical composition to ensure full compatibility and long-term resistance.
Why is any-angle operation so important for industrial applications?
It provides unmatched versatility, allowing users to apply products in any position without loss of performance, which is essential for machinery maintenance, construction, and automotive repairs.
Can this BOV mechanism handle extremely high-viscosity products?
Absolutely. It is specifically designed to dispense viscous products like heavy-duty lubricants, sealants, and adhesives that would be impossible to spray with a standard aerosol valve.
How does this packaging innovation reduce product waste?
The collapsible pouch ensures almost all the product is pushed out, leaving less than 1% residue behind, unlike traditional aerosols that can leave over 10% of the product trapped in the can.
What are the propellant options for this system?
It is highly versatile and can be used with compressed gases like nitrogen (N2) or air, which are non-flammable and offer an excellent safety profile for industrial settings.
